CHECK VALVE CARTRIDGE
| PART NO. | CAVITY | CRACKING PRESSURE |
|---|---|---|
| CV10-W2017N | 7/8"-14 UNF | 1.7 BAR |
Technical Data
Max. Pressure
240 bar
Max. Flow
60 l/min
Cavity-Tooling
10W-2
Installation torque
35-45 Nm
Weight
0.08 Kg

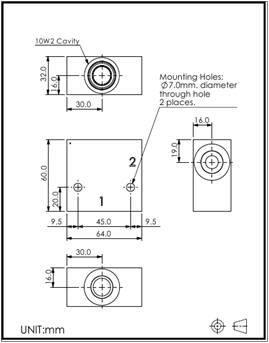

OPTIONAL BODY
| PART NO. | MATERIAL | MAX PRESSURE | PORT SIZE |
|---|---|---|---|
| ML-10W2-G04-A01 | Aluminium | 210 BAR | 1/2" BSPP |
| ML-10W2-G04-S01 | Ductile Iron | 350 BAR | 1/2" BSPP |
Technical Data
Max. Pressure
210 bar
Cavity-Tooling
10W-2
Aluminium
0.26 Kg
