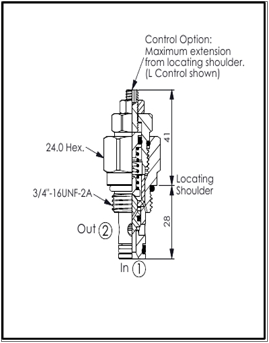

RELIEF VALVE
| PART NO. | CAVITY | CRACKING PRESSURE | ADJUSTMENT RANGE |
|---|---|---|---|
| RD08W20AL | 3/4" - 16 UNF | 10-315 BAR | LEAKPROOF SOCKET HEAD SCREW |
Technical Data
Max. Pressure
350 bar
Max. Flow
20 l/min
Cavity-Tooling
08W-2
Installation torque
25-35 Nm
Weight
0.11 Kg
OPTIONAL BODY
| PART NO. | MATERIAL | MAX PRESSURE | PORT SIZE |
|---|---|---|---|
| ML-08W2-G03-A01 | Aluminium | 210 BAR | 3/8" BSPP |
| ML-08W2-G03-S01 | Ductile Iron | 350 BAR | 3/8" BSPP |
Technical Data
Max. Pressure
210 bar
Cavity-Tooling
08W-2
Aluminium
0.22 Kg
