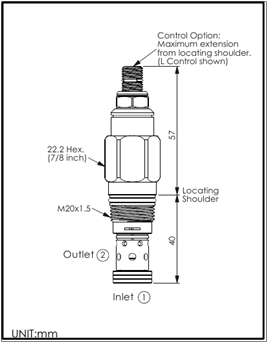

RELIEF VALVE - REPLACES SUN: RDDA-LAN
| PART NO. | CAVITY | CRACKING PRESSURE | ADJUSTMENT RANGE |
|---|---|---|---|
| RD10A25AL | M20x1.5 | 35-210 BAR | LEAKPROOF SOCKET HEAD SCREW |
Technical Data
Max. Pressure
350 bar
Max. Flow
95 l/min
Cavity-Tooling
10A-2
Installation torque
40-50 Nm
Weight
0.17 Kg
OPTIONAL BODY
| PART NO. | MATERIAL | MAX PRESSURE | PORT SIZE |
|---|---|---|---|
| ML-10A2-G03-A01 | Aluminium | 210 BAR | 1/2" BSPP |
Technical Data
Max. Pressure
210 bar
Cavity-Tooling
08W-2
Aluminium
0.2 Kg
