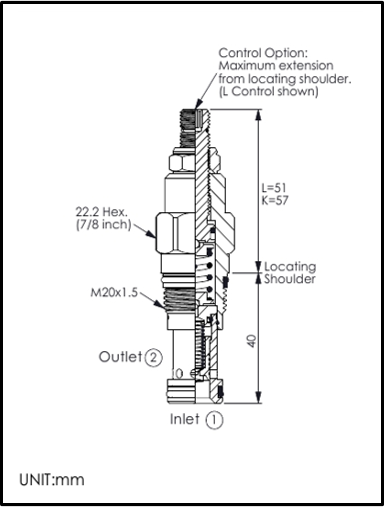

RELIEF VALVE - REPLACES SUN: RPEC-KDN
| PART NO. | CAVITY | CRACKING PRESSURE | ADJUSTMENT RANGE |
|---|---|---|---|
| RP10A20DK | M20x1.5 | 1.7-55 BAR | HANDKNOB |
Technical Data
Max. Pressure
350 bar
Max. Flow
95 l/min
Cavity-Tooling
10A-2
Installation torque
40-50 Nm
Weight
0.14 Kg

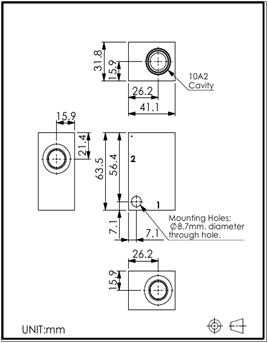

OPTIONAL BODY
| PART NO. | MATERIAL | MAX PRESSURE | PORT SIZE |
|---|---|---|---|
| ML-10A2-G03-A01 | Aluminium | 210 BAR | 1/2" BSPP |
Technical Data
Max. Pressure
210 bar
Cavity-Tooling
08W-2
Aluminium
0.2 Kg
