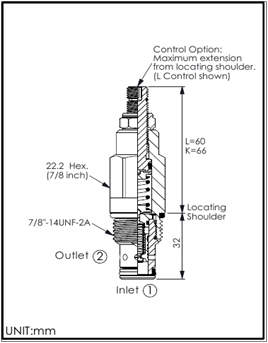

RELIEF VALVE
| PART NO. | CAVITY | CRACKING PRESSURE | ADJUSTMENT RANGE |
|---|---|---|---|
| RP10W20WL | 7/8"-14 UNF-2A | 10-315 BAR | LEAKPROOF SOCKET HEAD SCREW |
Technical Data
Max. Pressure
350 bar
Max. Flow
95 l/min
Cavity-Tooling
10W-2
Installation torque
35-45 Nm
Weight
0.16 Kg
OPTIONAL BODY
| PART NO. | MATERIAL | MAX PRESSURE | PORT SIZE |
|---|---|---|---|
| ML-10W2-G04-A01 | Aluminium | 210 BAR | 1/2" BSPP |
| ML-10W2-G04-S01 | Ductile Iron | 350 BAR | 1/2" BSPP |
Technical Data
Max. Pressure
210 bar
Cavity-Tooling
10W-2
Aluminium
0.26 Kg
