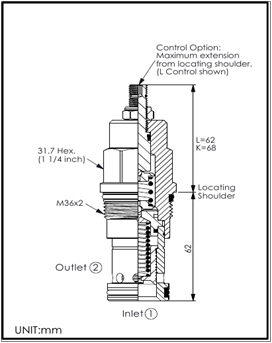

RELIEF VALVE - REPLACES SUN: RPIC-KDN
| PART NO. | CAVITY | CRACKING PRESSURE | ADJUSTMENT RANGE |
|---|---|---|---|
| RP16A20DK | M36x2 | 1-55 BAR | HANK KNOB |
Technical Data
Max. Pressure
350 bar
Max. Flow
380 l/min
Cavity-Tooling
16A-2
Installation torque
200-215 Nm
Weight
0.53 Kg

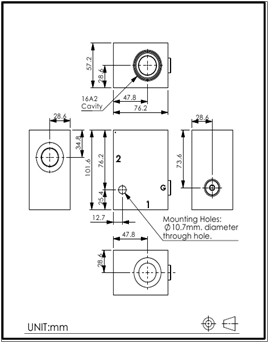

OPTIONAL BODY
| PART NO. | MATERIAL | MAX PRESSURE | PORT SIZE |
|---|---|---|---|
| ML-16A2-G08G-A01 | Aluminium | 210 BAR | 1/4" BSPP |
Technical Data
Max. Pressure
210 bar
Cavity-Tooling
08W-2
Aluminium
0.97 Kg
