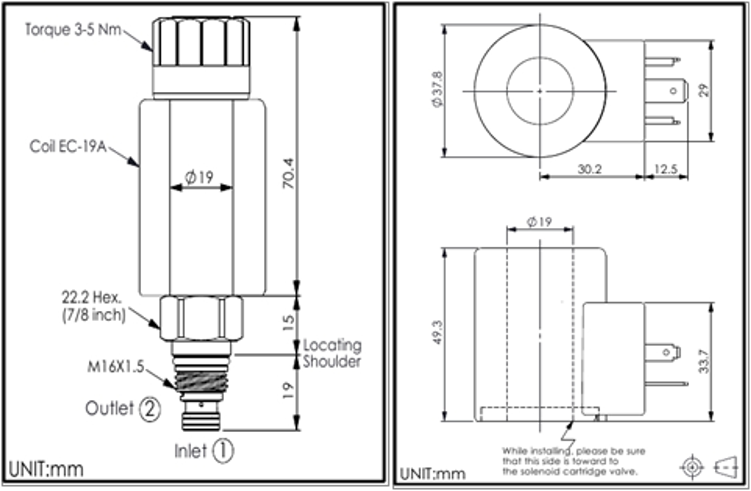

RELIEF VALVE - REPLACES SUN: RBAP-MAN
| PART NO. | CAVITY | CRACKING PRESSURE | ADJUSTMENT RANGE |
|---|---|---|---|
| PRB8A2DAP | M16x1.5 | 20-210 BAR | PROPORTIONAL |
Technical Data
Max. Pressure
350 bar
Max. Flow
1 l/min
Cavity-Tooling
8A-2
Installation torque
27-33 Nm
Weight
0.16 Kg

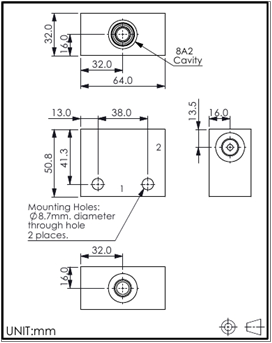

OPTIONAL BODY
| PART NO. | MATERIAL | MAX PRESSURE | PORT SIZE |
|---|---|---|---|
| ML-8A2-G02-A | Aluminium | 210 BAR | 1/4" BSPP |
Technical Data
Max. Pressure
210 bar
Cavity-Tooling
08W-2
Aluminium
0.25 Kg
