Operation
MOTOR SIZE
VOLTAGE
DUTY CYCLE
FLOW RATE
PRESSURE SETTING
TYPE OF SYSTEM TO OPERATE
RESERVOIR SIZE
POSITION OF MOTOR/PUMP
PENDENT
Enter Email
FURTHER COMMENTS




DESIGN YOUR OWN CUSTOM BUILT AC POWER PACK

Please Note the following dimensional advice: Coil positioning on electric can be changed around Adding extra valving onto the unit, may increase height or width of unit All ports on power packs are 3/8" BSPP Extras can be included on request such as pressure gauges, pressure switches, manual lever valves etc

SINGLE ACTING

TANK SIZE WIDTH LENGTH HEIGHT
1.6 L 152 MM 372 MM 216 MM
2 L 152 MM 407 MM 216 MM
4 L 152 MM 407 MM 216 MM
6 L 152 MM 527 MM 216 MM
8 L 152 MM 607 MM 216 MM
12 L 152 MM 555 MM 239 MM
20 L 152 MM 805 MM 239 MM

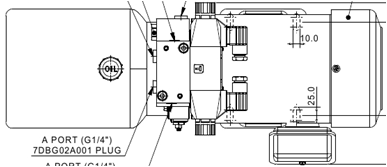

DOUBLE ACTING

TANK SIZE WIDTH LENGTH HEIGHT
1.6 L 152 MM 372 MM 216 MM
2 L 152 MM 407 MM 216 MM
4 L 152 MM 407 MM 216 MM
6 L 152 MM 527 MM 216 MM
8 L 152 MM 607 MM 216 MM
12 L 152 MM 555 MM 239 MM
20 L 152 MM 805 MM 239 MM

PT

TANK SIZE WIDTH LENGTH HEIGHT
1.6 L 152 MM 372 MM 216 MM
2 L 152 MM 407 MM 216 MM
4 L 152 MM 407 MM 216 MM
6 L 152 MM 527 MM 216 MM
8 L 152 MM 607 MM 216 MM
12 L 152 MM 555 MM 239 MM
20 L 152 MM 805 MM 239 MM
